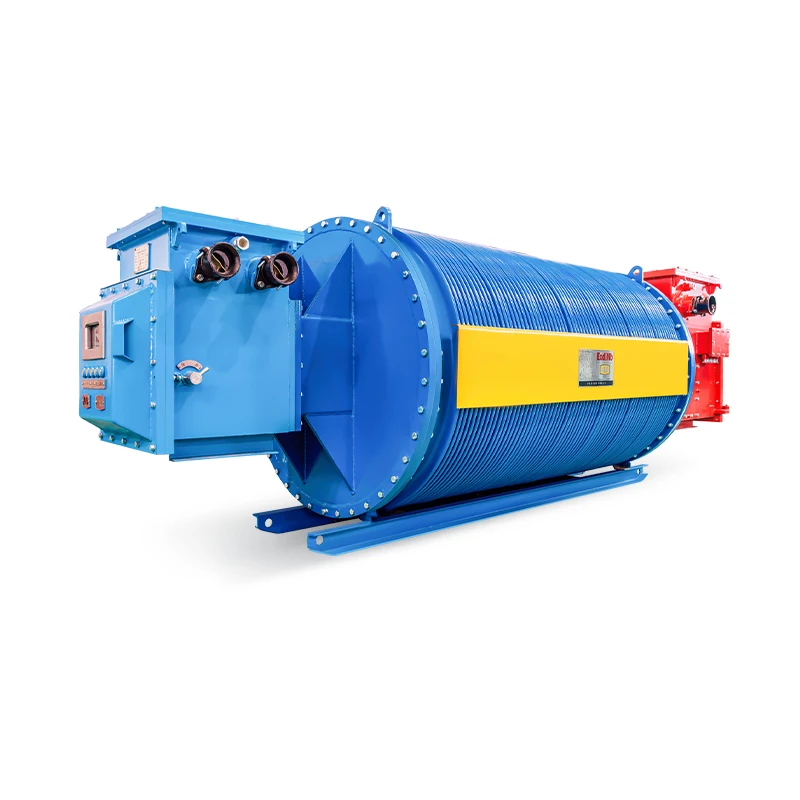

CEEG KBSGZY Mining Flameproof Mobile Substation
Brand: CEEG
Series: KBSGZY
Type: Dry-Type
Rated Voltage: 6kV, 10kV
Rated Power: 100kVA-6300kVA
Connection Section: Yy0(d11), Yyn0, Yy0, Dyn11
Nature of Business: Manufacturer
Contact Us
CEEG KBSGZY Mining Flameproof Mobile Substation
Brand: CEEG
Series: KBSGZY
Type: Dry-Type
Rated Voltage: 6kV, 10kV
Rated Power: 100kVA-6300kVA
Connection Section: Yy0(d11), Yyn0, Yy0, Dyn11
Nature of Business: Manufacturer
Contact Us

CEEG KBSGZY Mining Flameproof Mobile Substation-qlic.jpg

Working Principle:

1. The variable frequency transformer section adopts the low-voltage dual-splitting method to obtain two sets of three-phase power sources with a phase difference of 30 degrees. A static screen is installed between the high and low voltages, and the insulation level of the low-voltage coil is increased to the 10kV voltage level to meet the higher common-mode voltage generated by the secondary side frequency conversion rectifier device. The power supply transformer is placed in the explosion-proof chamber of the main transformer to provide control power for the frequency converter.

2. The high-voltage switch is equipped with an isolation switch and a circuit breaker to disconnect the control power and load current. The main power source adopts a PLC comprehensive protection system for monitoring and fault isolation, while the auxiliary transformer uses fuses for overcurrent protection.

3. The low-voltage switch adopts a dual-circuit design and uses two sets of PLC comprehensive protection systems for mutual monitoring and detection, completing equipment operation monitoring and fault isolation.

4. The high and low voltage switches communicate with the downstream frequency converter simultaneously to achieve phase closure lock and interlock functions, avoiding equipment damage due to operational errors.

Mine explosion-proof switch

1. It is equipped with an imported industrial Programmable Logic Controller (PLC) and Human-Machine Interface (HMI) to form the core control system: stable performance, precise protection, and easy maintenance.

2. Utilizes the HMI screen for displaying operational status, electrical parameters, and faults. The interface is a fully Chinese LCD. Parameters can be set within the HMI screen with password lockout functionality.

3. Continuous current adjustment with a stepping value of 1A.

4. Independent compartments for circuit breaker, isolating switch, and connection enabling live maintenance and ensuring safe and reliable operation and maintenance.

5. Features compact size, rational structure, intuitive operation, and dual electric/manual stored energy closing mechanisms.

6. Comprehensive protection functions include overload, short circuit, overvoltage, under voltage, leakage, leakage lockout, phase loss, overtemperature, wind power gas lockout, and emergency stop of upstream power supply. And also protection fault feedback from the low-voltage side of the mobile substation.

7. The PLC intelligent protection system includes self-diagnosis, fault diagnosis, inspection, and memory functions. Real-time detection and digital display of operational status and fault indications facilitate system operation, maintenance, diagnosis, and handling.

8. Modular design with standard RS232/485 communication interface, providing powerful remote communication and control capabilities.

9. All faults are disconnected by the signal line driving the high-voltage side vacuum circuit breaker, thereby reducing the breaking current and overcoming the dead zone problem where faults cannot be disconnected between the low-voltage winding of the transformer and the low-voltage switch circuit.

10. The protection box is divided into four circuits on two sides, meeting the requirements for multiple load connections.

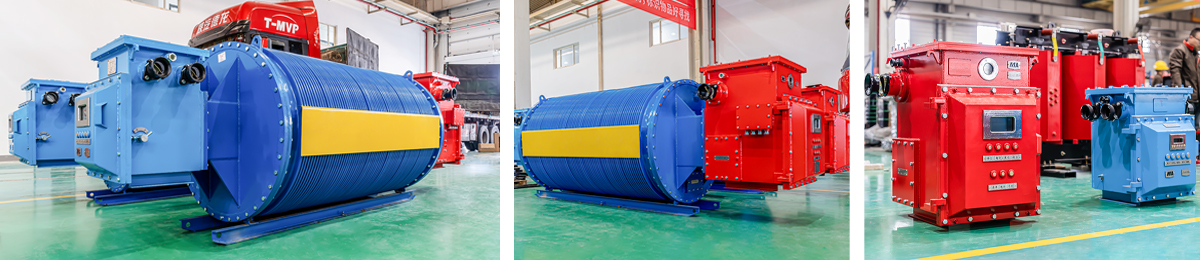

CEEG KBSGZY Mining Flameproof Mobile Substation.jpg

KBSGZY Mining Flameproof Mobile Substation

Model

Rated Capacity(kva)

Primary Voltage

Secondary Voltage

Connection Section

No-Load Loss(W)

Load Loss(W)

Short Circuit Impedance

No-Load Current

KBSGZY2-T-100/6

100

6000±5%

693/400
1200/693

Yy0(d11)

520

920

4

2.5

KBSGZY2-T-125/6

125

6000±5%

600

1080

4

2.5

KBSGZY2-T-160/6

160

6000±5%

700

1300

4

2

KBSGZY2-T-200/6

200

6000±5%

820

1550

4

2

KBSGZY2-T-250/6

250

6000±5%

950

1800

4

2

KBSGZY2-T-315/6

315

6000±5%

1100

2150

4

1.8

KBSGZY2-T-400/6

400

6000±5%

1300

2600

4

1.8

KBSGZY2-T-500/6

500

6000±5%

1500

3100

4

1.5

KBSGZY2-T-630/6

630

6000±5%

1800

3680

4

1.5

KBSGZY2-T-800/6

800

6000±5%

1200/693
3450

Yy0(d11)
Yyn0

2050

4500

4

1

KBSGZY2-T-1000/6

1000

6000±5%

2350

5400

4

1

KBSGZY2-T-1250/6

1250

6000±5%

2750

6500

4

1

KBSGZY2-T-1600/6

1600

6000±5%

3350

8000

4

0.8

KBSGZY2-T-2000/6

2000

6000±5%

1200
3450

Yy0
Yyn0

3800

9500

4.5

0.6

KBSGZY2-T-2500/6

2500

6000±5%

4500

10600

5

0.6

KBSGZY2-T-3150/6

3150

6000±5%

3450

Dyn11

5300

12500

5.5

0.6

KBSGZY2-T-4000/6

4000

6000±5%

6100

14000

6

0.6

KBSGZY2-T-50/10

50

10000±5%

693/400
1200/693

Yy0(d11)

390

680

4

2.5

KBSGZY2-T-80/10

80

10000±5%

490

880

4

2.5

KBSGZY2-T-100/10

100

10000±5%

560

1050

4

2.5

KBSGZY2-T-125/10

125

10000±5%

650

1300

4

2.5

KBSGZY2-T-160/10

160

10000±5%

800

1500

4

2

KBSGZY2-T-200/10

200

10000±5%

950

1800

4

2

KBSGZY2-T-250/10

250

10000±5%

1100

2100

4

2

KBSGZY2-T-315/10

315

10000±5%

1300

2500

4

1.8

KBSGZY2-T-400/10

400

10000±5%

1500

3000

4

1.8

KBSGZY2-T-500/10

500

10000±5%

1750

3500

4

1.5

KBSGZY2-T-630/10

630

10000±5%

2000

4100

4

1.5

KBSGZY2-T-800/10

800

10000±5%

1200/693
3450

Yy0(d11)
Yyn0

2300

5100

4

1.2

KBSGZY2-T-1000/10

1000

10000±5%

2600

6100

4.5

1.2

KBSGZY2-T-1250/10

1250

10000±5%

3100

7400

4.5

1

KBSGZY2-T-1600/10

1600

10000±5%

3800

8500

5

1

KBSGZY2-T-2000/10

2000

10000±5%

1200
3450

Yy0
Yyn0

4500

9700

5

0.7

KBSGZY2-T-2500/10

2500

10000±5%

5200

10800

5.5

0.7

KBSGZY2-T-3150/10

3150

10000±5%

3450

Dyn11

6100

12800

5.5

0.7

KBSGZY2-T-4000/10

4000

10000±5%

7000

15000

6

0.7

KBSGZY2-T-5000/10

5000

10000±5%

8200

17600

6.5

0.6

KBSGZY2-T-6300/10

6300

10000±5%

9500

20000

7

0.6

CEEG Transformer Production Base covers an area of over 600 acres (40 hectares), with a total construction area of 180,000 square meters and a workforce of more than 1,200 workers. Equipped with a complete set of world-class transformer production and testing equipment including cutting, vacuum casting, vacuum impregnation, and testing, it has an annual production capacity of 30 million kVA of power transformers.

The factory possesses a comprehensive set of cutting-edge equipment representing industry-leading standards, including shearing machines, fully automatic winding machines, robotically operated automatic stacking machines, Germany's Hedrich vacuum casting tanks, vacuum impregnation equipment, air cushion transport vehicles, fully enclosed production workshops with a cleanliness level of 100,000, 20-ton vertical winding machines, 10-ton horizontal winding machines, kerosene gas-phase drying equipment, and 200-ton cranes. Additionally, it has pioneered the application of transformer collaborative design platforms in the industry, effectively integrating product data, product development, and production processes.
