CEEG Energy Storage Prefabricated Substation Manufacturer

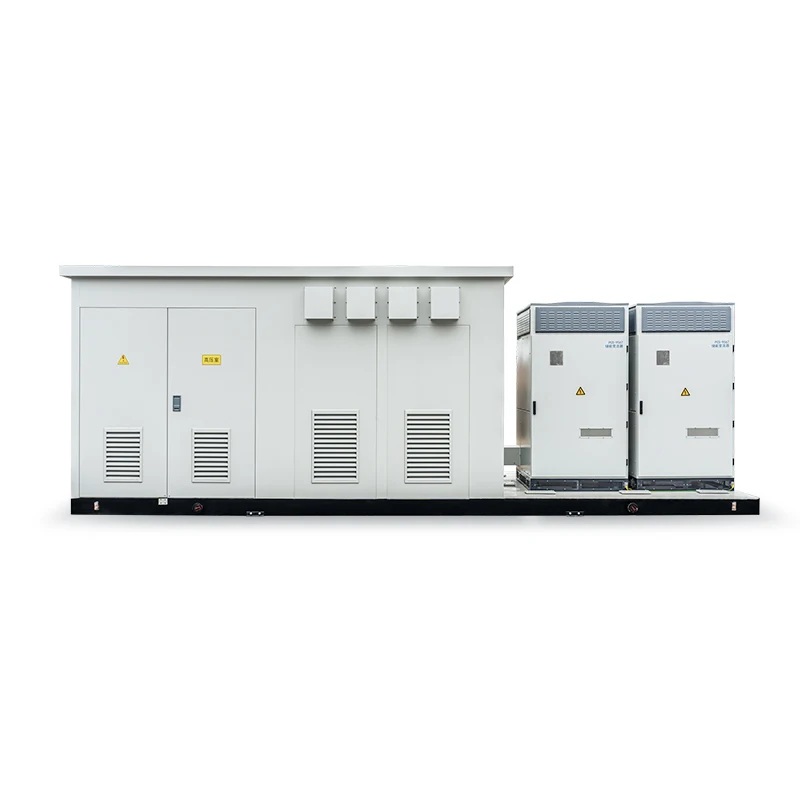

CEEG Energy Storage Substation.jpg

1. Communication protocols for external communication can be customized to meet individual project requirements, as these can vary significantly from site to site. Common communication protocols include Modbus-RTU, Modbus-TCP, CAN2.0B, IEC61850, IEC60870-5-104, and IEC60870-5-103.

2. Each PCS (Power Conversion System) manufacturer has unique interface locations and types, necessitating the design of a tailored structure for each PCS manufacturer.

3. The AC measurement voltage level for PCS can range from 0.315kV to 0.69kV. Typically, for PCS AC measurement voltages at or below 0.4kV, the corresponding DC side rated voltage does not exceed DC1000V, and such models are predominantly intended for indoor use. For PCS AC measurement voltages between 0.5kV and 0.69kV, the corresponding DC side rated voltage is generally DC1500V, and these models are designed for outdoor use, often achieving IP54 or higher protection levels.

4. The ESVB-CU enclosure can be either a container-type enclosure, often custom-sized and fully welded, which tends to be relatively expensive, or a standard assembly-type enclosure, offering cost savings. In most cases, the latter option is recommended for clients.

Currently, energy storage transformer capacities of up to 6300kVA are available, and larger capacities can be customized to meet specific customer demands.

CEEG Energy Storage Prefabricated Substation Manufacturer.jpg

Key Indicators		Technical Parameter Values
AC Side Parameters
AC Connection Mode	3-phase 3-wire (including step-up transformer)	Rated Grid Frequency	50Hz
Rated Power	≥5000kW	Total Current Harmonic Distortion	<3% (at rated power)
Short-term Overload Capacity	/	Power Factor	>0.99 (at 20% load)
Rated Grid Voltage	37kV	Adjustable Power Factor Range	1 (leading) - 1 (lagging)
Voltage Operating Range		37kV±10%
Protection
Transformer Protection		Yes
Energy Storage PCS Protection		Yes
System
Protection Level	IP54	Cooling Method	Forced air cooling
Noise Level	<77dB (at 1m distance)	Relative Humidity	0 - 100%, non-condensing
Operating Ambient Temperature	－25℃～+60℃	Communication Interfaces	Ethernet, RS485, CAN
Storage Ambient Temperature	－40℃～+70℃	Power Supply for Control System	Self-powered mode
Standards Compliance: IEC 62271-202, EN 50588-1, IEC 60076, IEC 62271-200, IEC 61439-1

CEEG Transformer Production Base covers an area of over 600 acres (40 hectares), with a total construction area of 180,000 square meters and a workforce of more than 1,200 workers. Equipped with a complete set of world-class transformer production and testing equipment including cutting, vacuum casting, vacuum impregnation, and testing, it has an annual production capacity of 30 million kVA of power transformers.

The factory possesses a comprehensive set of cutting-edge equipment representing industry-leading standards, including shearing machines, fully automatic winding machines, robotically operated automatic stacking machines, Germany's Hedrich vacuum casting tanks, vacuum impregnation equipment, air cushion transport vehicles, fully enclosed production workshops with a cleanliness level of 100,000, 20-ton vertical winding machines, 10-ton horizontal winding machines, kerosene gas-phase drying equipment, and 200-ton cranes. Additionally, it has pioneered the application of transformer collaborative design platforms in the industry, effectively integrating product data, product development, and production processes.
