CEEG 10kV Medium Voltage Marine Transformers
Brand: CEEG
Type: Dry-Type
Rated Voltage: 0.4kV-11kV
Rated Capacity: 315kVA-8000kVA
Phase: Three Phase
Nature of Business: Manufacturer
Contact Us
CEEG 10kV Medium Voltage Marine Transformers
Brand: CEEG
Type: Dry-Type
Rated Voltage: 0.4kV-11kV
Rated Capacity: 315kVA-8000kVA
Phase: Three Phase
Nature of Business: Manufacturer
Contact Us

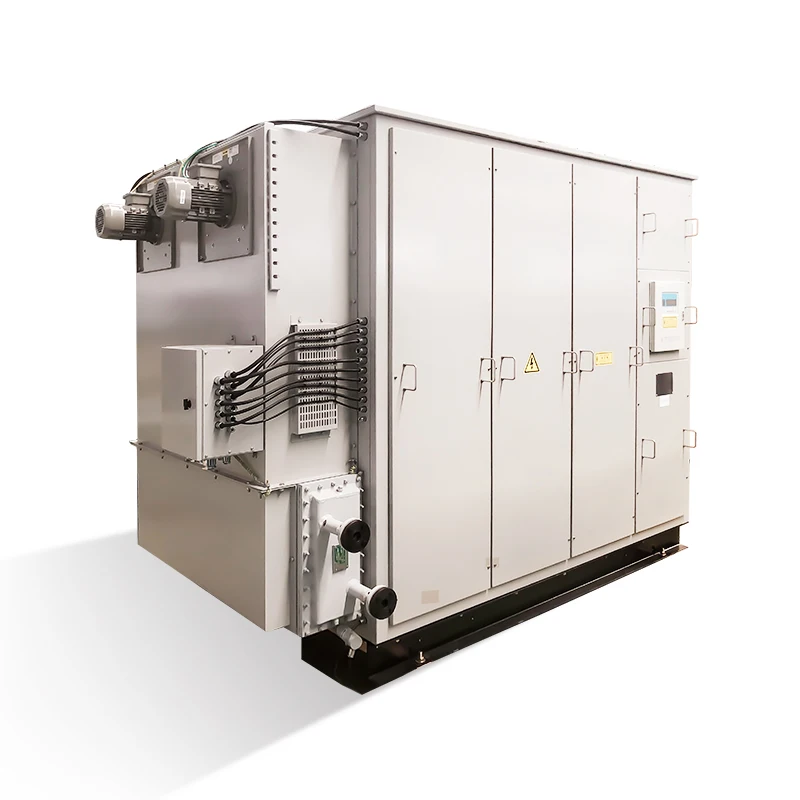

CEEG CEEG 10kV Medium Voltage Marine Transformers.jpg

The marine and offshore platform transformer products produced by our company have passed product type approval by the CCS classification society and factory approval by the BV classification society. We can provide products including CCS, ABS, DNV-GL, BV, LR, RINA, and NK—product certificates from major classification societies.

In 2001, CEEG signed a strategic partnership agreement with DuPont. With the help of DuPont's advanced and mature Leiliton transformer core technology, the open-type transformers produced by CEEG have always been in a leading position in the industry.

In 2010, on the occasion of CEEG's 20th anniversary, CEEG once again cooperated with DuPont and signed a licensing agreement for the DuPont NOMEX brand trademark. The DuPont NOMEX insulation system will be applied to a full range of products in China Electric. This is a new beginning for the brand alliance between CEEG and DuPont.

In 2020, CEEG signed a strategic cooperation agreement with DuPont and held a signing ceremony in Yangzhong Linjiang Industrial Park.

Ultra-high Insulation, Triple Protection against Vibration

Our company manufactures marine (offshore platform) transformers, which are dry-type self-cooled (air-cooled, water-cooled) transformers. They can be used as equipment for power supply, lighting, isolation, propulsion, and rectification in the power grid. The insulation class can be divided into B, F, and H levels. Marine low-voltage transformers have a capacity of 8000kVA and below, with voltage levels below 1kV. Marine medium-voltage and offshore platform transformers have a capacity of 8000kVA and below, with voltage levels below 10kV.

We have a professional technical team that can design and manufacture various special specifications of products according to customer requirements.

Performance Features

1. Modular Cabinet: The cabinet adopts a modular assembly, making installation convenient and fast.

2. Noise Reduction: Utilizes a through-core screw structure, significantly reducing noise.

3. Special Techniques: Coils undergo multiple impregnation processes, while electrical and mechanical connectors employ special techniques to enhance "triple protection" performance.

4. 45° Cold-rolled Silicon Steel Sheets: The core material utilizes high-quality cold-rolled silicon steel sheets, carefully stacked at a 45° angle.

5. Stuffing Box: A stuffing box for cable entry and exit is provided on the transformer enclosure. The stuffing box can be positioned on the left or right side. For transformers with a capacity of 500kVA and above, the cable entry and exit are generally arranged at the bottom, with cable holes on the transformer base and devices for preventing cable scratches and securing cables.

CSCD Series Medium Voltage Marine Transformers (10kV)

Model

Rated Capacity (KVA)

No-Load Loss (W)

Load Loss (W 75℃)

No-Load Current (%)

Load Loss (%)

CSCD-315/10

315

110

4080

1.8

4

CSCD-400/10

400

1220

4690

1.8

4

CSCD-500/10

500

1450

5740

1.8

4

CSCD-630/10

630

1620

7010

1.6

6

CSCD-800/10

800

1900

8180

1.6

6

CSCD-1000/10

1000

2210

9560

1.4

6

CSCD-1250/10

1250

2610

11400

1.4

6

CSCD-1600/10

1600

3060

13800

1.4

6

CSCD-2000/10

2000

4150

17000

1.2

6

CSCD-2500/10

2500

5000

20200

1.2

6

CSCD-3150/10

3150

5400

24000

1

6

CSCD-3500/10

3500

5800

28000

1

7.5

CSCD-4000/10

4000

6500

34000

0.8

8

CSCD-5000/10

5000

7800

42000

0.8

8

CSCD-6300/10

6300

8960

47000

0.6

8

CSCD-8000/10

8000

10220

53000

0.6

9

Primary rated voltage (kV): 11, 10.5, 10, 6.6, 6.3, 6, 3.3, 3 or others
Secondary rated voltage (kV): 0.45, 0.4 or others
Tapping Range: ±2 x 2.5%, ±5%
Connection Section: Dyn11 or others

CEEG Transformer Production Base covers an area of over 600 acres (40 hectares), with a total construction area of 180,000 square meters and a workforce of more than 1,200 workers. Equipped with a complete set of world-class transformer production and testing equipment including cutting, vacuum casting, vacuum impregnation, and testing, it has an annual production capacity of 30 million kVA of power transformers.

The factory possesses a comprehensive set of cutting-edge equipment representing industry-leading standards, including shearing machines, fully automatic winding machines, robotically operated automatic stacking machines, Germany's Hedrich vacuum casting tanks, vacuum impregnation equipment, air cushion transport vehicles, fully enclosed production workshops with a cleanliness level of 100,000, 20-ton vertical winding machines, 10-ton horizontal winding machines, kerosene gas-phase drying equipment, and 200-ton cranes. Additionally, it has pioneered the application of transformer collaborative design platforms in the industry, effectively integrating product data, product development, and production processes.

CEEG production ability (2).jpg
